Methodology

This file is the contract between the human author(s) and the LLM agents defined in agents/. It describes how the paper is built, not what it says.

Primary artifacts (invariant)

Four artifacts are primary and must be consistent and up to date at all times:

The manuscript (paper/main.tex, paper/sections/*.tex).
The PROV-O graph (doc/provenance.ttl).
The logbook (doc/logbook.md).
The slide decks — slides/pitch-5min.tex (5-minute pitch) and slides/conference-30min.tex (25 + 5 conference talk), Beamer + DLR Corporate Design (slides/style/fair2r-beamer.sty). Rendered PDFs are derivatives.

A working session is not complete until all four are in sync. A commit that updates one of them and leaves the others lagging is a defect, even if the build passes. This invariant supersedes any per-agent style rule elsewhere in this repository. The slide decks are downstream of the manuscript: a claim that appears on a slide must already appear in the paper text.

Pipeline overview

       human goal
            │
            ▼
   ┌────────────────┐
   │  orchestrator  │
   └───────┬────────┘
           │
   ┌───────┴────────┬──────────────┬────────────────┐
   ▼                ▼              ▼                ▼
scientific-    source-       illustration       condenser
 writer        analyzer
   │                │              │                │
   ▼                ▼              ▼                ▼
   ─────────  proposed triples  ──────────  ──────────
                       │
                       ▼
              provenance-curator ──► doc/provenance.ttl
                       │
                       ▼
              (audit pass)
                       │
        ┌──────────────┼─────────────────┐
        ▼              ▼                 ▼
  fair-aligner   layout-scrutinizer  readability-reviewer
        │              │                 │
        ▼              ▼                 ▼
                  human sign-off
                       │
                       ▼
                    git commit
                       │
                       ▼
                    logbook entry

Two passes of AI

Authoring pass. scientific-writer, source-analyzer, illustration, condenser. AI proposes; humans dispose.
Audit pass. fair-aligner, layout-scrutinizer, readability-reviewer, provenance-curator. AI checks the manuscript and the graph against explicit criteria.

Verification ladder

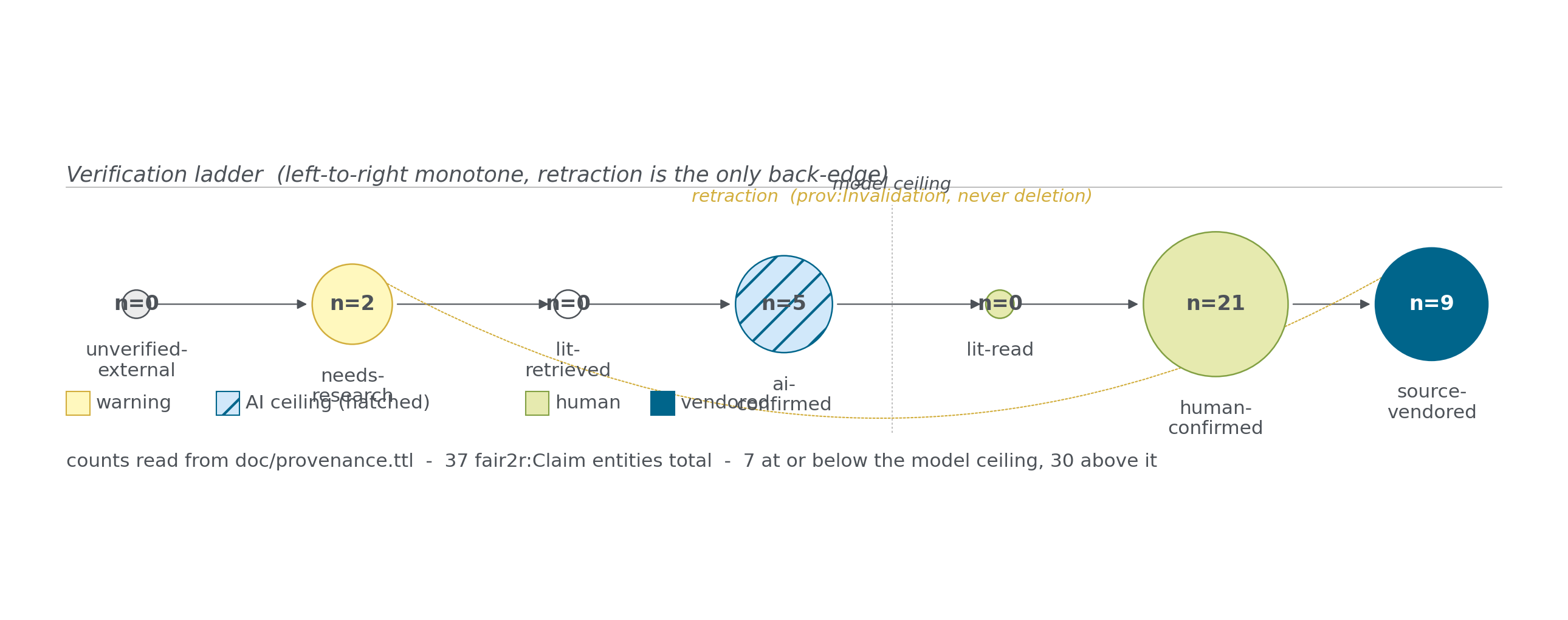

Verification ladder rendered as a finite-state machine, with each rung sized in proportion to the number of fair2r:Claim entities currently at that rung in the live graph.

A fair2r:Claim carries one of:

state	meaning
`unverified`	Asserted but no evidence yet attached.
`needs-research`	Evidence-gap acknowledged, search planned.
`ai-confirmed`	An AI agent verified against a vendored or fetched source.
`human-confirmed`	A human author verified the source and the inference.
`source-vendored`	The source itself is in the repo under `doc/sources/`.

A claim must reach human-confirmed (or source-vendored) before it can appear in main-condensed.tex.

The states form a finite-state machine, monotone non-decreasing modulo explicit retraction (the only legal back-edge, recorded as a prov:Invalidation activity in doc/provenance.ttl). The diagram below mirrors paper/figures/ladder-fsm.mmd, the source-of-truth artefact for the manuscript figure of the same name.

stateDiagram-v2 direction LR [*] --> unverified_external unverified_external: unverified-external needs_research: needs-research lit_retrieved: lit-retrieved ai_confirmed: ai-confirmed lit_read: lit-read unverified_external --> needs_research: recognise gap needs_research --> lit_retrieved: DOI / URL resolves lit_retrieved --> ai_confirmed: AI fetch + quoted snippet ai_confirmed --> lit_read: human reads lit_read --> unverified_external: prov:Invalidation (retraction)

Definition of done for a section

Prose compiles in paper/main.tex with no \todo left.
Every claim has a fair2r:Claim IRI in doc/provenance.ttl at human-confirmed or source-vendored.
fair-aligner audit reports no fails for the section.
Logbook entry committed.

Branch and deployment policy

main is the default branch. All routine work goes via pull request from feature branches into main; direct pushes to main require explicit human-author instruction. The repository's GitHub Pages site is configured with Source = GitHub Actions, deploying via the consolidated .github/workflows/build.yml (site + deploy jobs) on every push to main. No legacy gh-pages branch is used.

Form factor and page budget

F(AI)²R is published as a single short-form paper. The default budget is 10 pages of body, plus references and appendices, which do not count against the budget. There is no separate condensed manuscript; the condenser agent (agents/condenser.md) is repurposed as a page-budget enforcer that fires when make -C paper pages reports a body page count above the budget.

A budget change requires (a) human-author approval recorded in doc/logbook.md and (b) a corresponding update to paper/Makefile (PAGE_BUDGET).

Design system

The site, the paper PDF, and (forthcoming) the slide deck follow the DLR Corporate Design (CD-Handbuch §10.1 Schriften, §4 Printmedien, §10 Wording):

Type: Frutiger 45 Light for Drucksachen; Arial is mandated for electronic channels (Web, PowerPoint, E-Mail). Tokens are vendored in site/static/dlr/colors_and_type.css; the LaTeX style in paper/style/fair2r.sty carries the same intent into the PDF.
Colour: Default DLR Blue #00658B; chapter variants Green (#82A043) and Yellow (#D2AE3D) are available via <html data-variant="b|c"> on the site or \usepackage[variant=b]{style/fair2r} in the paper.
Layout: white backgrounds, generous whitespace, square corners (0–2px max), hairline #cfcfcf borders, no gradients in chrome, no shadows on print.
Voice: precise, factual, institutional. No second person, no emoji, no marketing verbs. British English is the canonical English rendering (per CD-Handbuch §10).

The institutional imprint (Florian Krebs, ORCID 0000-0001-6033-801X, DLR ZLP Augsburg, Helmholtz / NFDI4Ing / HMC) appears identically on the title block of paper/main.tex, the Acknowledgements section, the public site footer, CITATION.cff, codemeta.json, and .zenodo.json. Drift between any pair is a defect surfaced by the FAIR aligner.

Process evolutions during cooperative writing

The methodology above is the current state. The cooperation that produced this paper imposed roughly twenty structurally-significant changes on its own scaffolding while the work was underway; they are worth surfacing because a future cohort following this methodology will land at most of them again. The full chronology lives in doc/logbook.md; the summary below groups by class. The same digest appears as Table 1 in paper/sections/evolution.tex.

When	Class	What changed	Trigger / impact
2026-05-06	Rule	Primary-artefact consistency invariant	Researcher direction; orchestrator named keystone; FAIR-aligner surfaces desync as audit `fail`.
2026-05-06	Rule	Chapter-per-file rule for `.tex`	`paper/main.tex` refactored as a thin assembler; one `\section{}` per file; enabled chapter-level handback.
2026-05-06	Rule	Page budget (~10 pp body) and short-form pivot	Researcher framing as a position paper; `condenser` agent repurposed as page-budget enforcer.
2026-05-06	Rule	Source-research mandate; Consensus / Scholar default	Cut hallucinated-citation surface; paywall-escalation sub-rule shipped together.
2026-05-06	Rule	Contribution-tracking rule	Researcher question "what is my contribution?"; spawned `user-contributions.md` and the `fair2r:Contribution` schema branch.
2026-05-06	Schema	`fair2r:Contribution` class with seven sub-types	Operationalises the partition the Author's Note describes; mirrors per-side audit.
2026-05-06	Schema	`ai-confirmed` verification rung added	Felt cost of single-tier verification; rung added rather than weakening the existing two.
2026-05-06	Schema	`fair2r:Slidedeck` class; slides as fourth primary artefact	Researcher request for two decks; `presentation` agent owns them.
2026-05-06	Agent	`presentation` agent added to `agents/`	Slides became binding artefact; new prompt minted rather than overloading `scientific-writer`.
2026-05-06	Manuscript	Position-paper reframing	Researcher direction "fair should be more a position paper"; reshaped the contribution narrative.
2026-05-06	Manuscript	Author's Note carried over from `noheton/Obscurity-Is-Dead`	Voice-and-stance anchor; the methodology's first-person register lives there only.
2026-05-06	Pipeline	Static site builder + Pages workflow + paper-build CI	Made the artefact public from day one; cache-bust on the deployed site followed when staleness surfaced.
2026-05-06	Pipeline	Marp slide pipeline retired; Beamer-only	Researcher direction "only ship beamer"; one toolchain to maintain instead of two.
2026-05-07	Rule	DLR Corporate Design pinned for every illustrator tool	Default tool theming counts as an unfinished figure; written above the tool list, not below.
2026-05-07	Rule	Illustration toolset opened beyond TikZ (matplotlib, mermaid, networkx, graphviz, …)	Researcher direction; `ladder-populations` and `contribution-histogram` matplotlib figures unlocked.
2026-05-07	Rule	No-parentless-claim rule (every claim must name a generating activity)	Eight-claim defect found by the verification example; rule landed by the curator pass to prevent recurrence.
2026-05-07	Schema	`fair2r:repairs` object property	Curator pass: per-claim repair activity carries the reason as `rdfs:comment`; reasons are queryable.
2026-05-07	Agent	`research-protocol` agent added to `agents/`	Standalone prompt for verification-axis research notes; produced `provenance-verification.md`.
2026-05-07	Pipeline	Pages source switched from branch deploy to GitHub Actions	Default branch became `main`; CI is single source of truth for the live site.
2026-05-07	Pipeline	LaTeX-fragment stripper in the site builder	Markdown sources embedded `\emph{}`, `\textsc{}`, `\begin{enumerate}`; the rendered Pages site needed a clean prose pass.

The catalogue is partial by construction — pure prose edits, single-paragraph content prompts, and figure refinements that did not change the scaffolding are recorded in doc/user-contributions.md (forty-eight typed entries at time of writing) but not promoted into this digest. The cut-off rule is "would a future researcher following this methodology run into the same decision?"; if yes, the row appears here.
